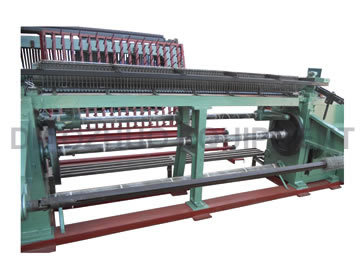

Hexagonal Mesh Machines adopt straight-reversetwisted principle, do not need to make the iron wire into spring type, so work fficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80X100mm or at the customer's requirement.
It also has characteristics as follows:
1, Max. Speed can be 65 mesh per minute, speed can be adjusted with different raw materials.
2, Smooth operation, low noise. It will give an alarm at broken wire, broken mesh or at preset length.
3, Big width. It can weave double 1.25 m or single 2.5 m width.
4, Even and flat openings, wire can be added at any spot when weaving.
5, It has clutch brake device, can move by spot, flexible operation and has no high demand for operating personnel.
6, Reliable lubrication and convenient use.
7, Durable and strong, convenient maintenance.
We also provide fittings for weaving machines and thread spool machine. We may also design machines according to CNW Series Wire Netting Machine is designed to produce hexagonal screens with galvanized low carbon steel wires, suitable for stuctural, heat insulation, protective, and forcing applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity. Satisfy cstomers' particular requirements. Timely delivery & guaranteed quality.
